Add Controls to a Report

This document describes how to add controls to a report.

Add Controls from the Standard Controls Bar

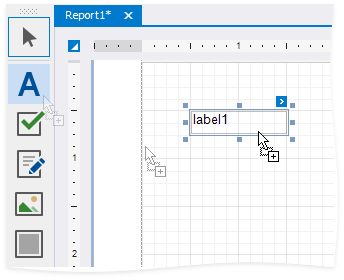

Use the End-User Designer's Toolbox to add controls to your report.

Add Data-Bound Controls from the Field List

You can drag fields from the Field List onto your report to add data-bound controls, after you bound your report to a data source.

Add a Control

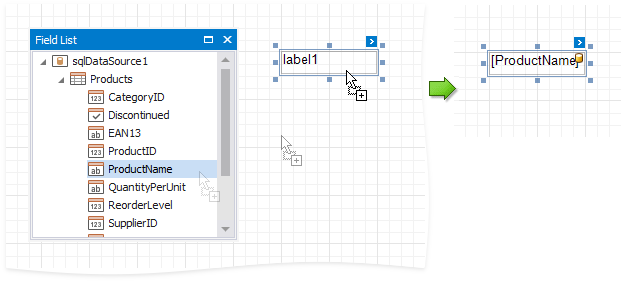

Drag a field from the Field List and drop it onto the report's surface.

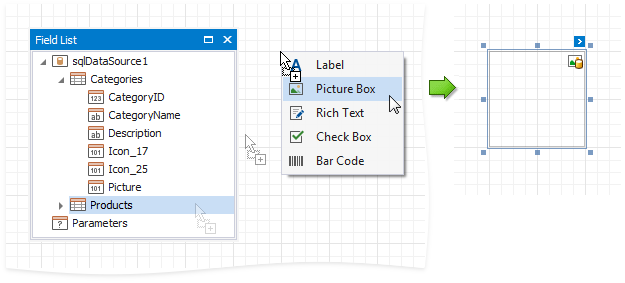

To add a control of specific type, do either of the following:

• Hold down the SHIFT key and drop a data field onto a report's surface.
• Right-click a data field and drop it onto a report's surface.

This invokes a context menu where you can select which control to add.

Add a Table

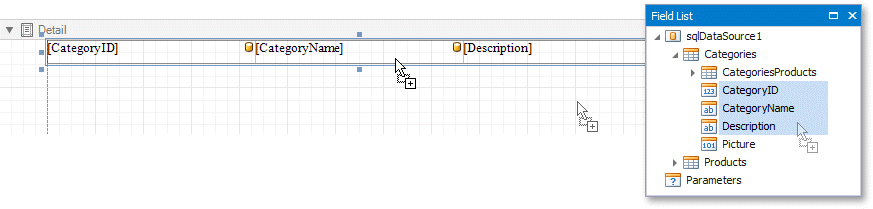

Hold the CTRL or SHIFT key and click several fields. Drop them onto the report's surface to add a table with its cells bound to these fields.

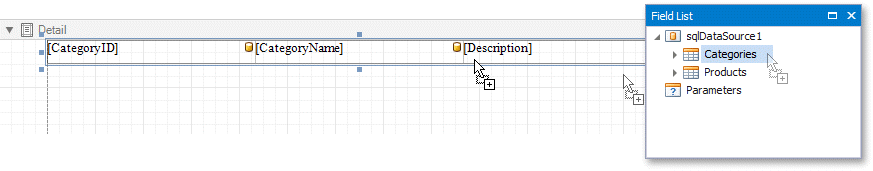

Drop an entire data table from the Field List to add a report table with columns bound to the data table's fields.

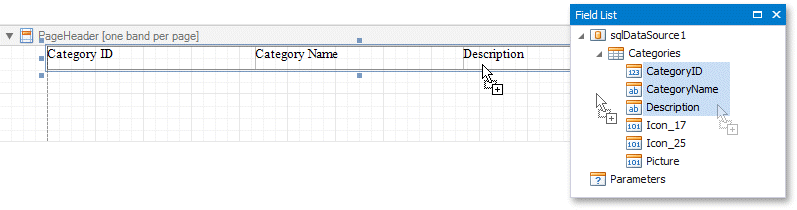

To add column headers, do either of the following:

• Select the fields and hold the CTRL or SHIFT key when you drop them onto a report surface.
• Drag and drop fields with the right mouse button.

This adds a new table whose cells display the field names.

Add Content from External Sources

You can add text and graphics from external applications to your reports:

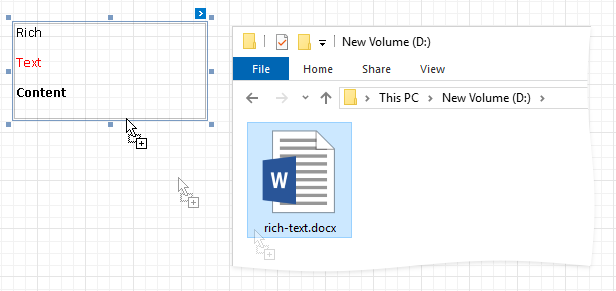

• Drag a file, text or image from an external application onto your report.

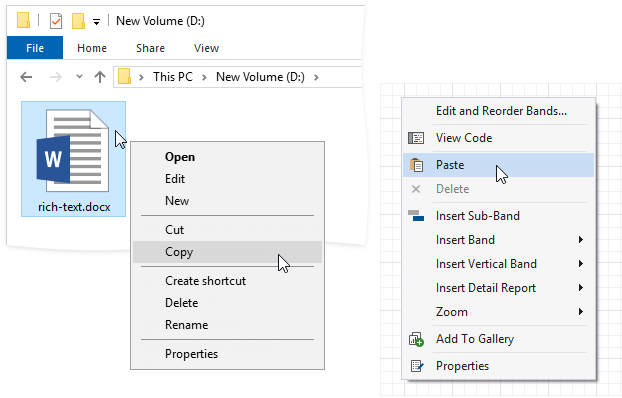

• Copy a file, text or image from an external application, and paste it into your report.



The following table shows which file types transform into report controls:

File Type	Control
.TXT	A Label control that contains file contents.
.DOC, .DOCX, .RTF, .HTM, .HTML	A Rich Text control that contains file content.
.JPG, .PNG, .BMP, .GIF, .TIF, .SVG	A Picture Box control that contains the image.
